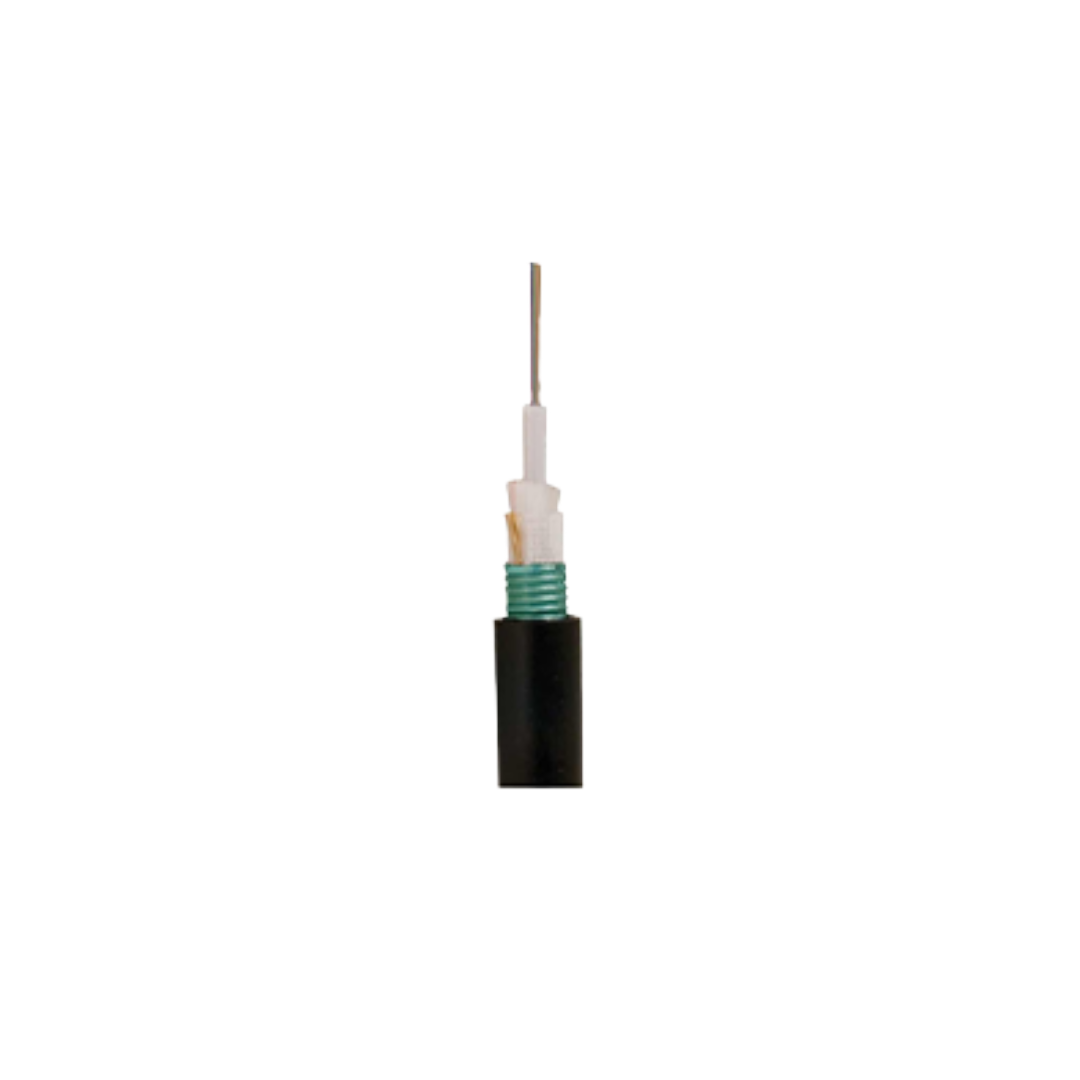

Cable Parameter

• Fiber Mode: Single Mode
• Fiber Type: OS2
• Fiber Count: 24

Dimension: 2.0mm±0.5mm

Color : Blue, orange, green, brown, gray, natural color, Red, black, yellow, purple, pink, aqua blue

• Loose Tube:

Dimension : 2.0mm±0.5mm
Material: PBT
Tube color: Blue, orange, green, brown
Loose tube number: 2
Filling rope number: 1
Fiber in loose tube number: 12

• Material of reinforcement: Phosphating steel wire 1.0mm
• Outer / Inner Jacket :

Diameter: Inner1.6mm±0.10mm/Outer1.7mm±0.10mm

Material: HDPE

Sheath color: Black

Line color: Yellow

• Sheath outer diameter: 12.5mm±0.2mm
